In high-complexity production scenarios across industries like petroleum, chemical engineering, and textile printing and dyeing, paperless recorders with multi-channel support, large storage capacity, and high reliability are core devices for full-process data monitoring and management. The GT80R Paperless Recorder centers on a 10.4-inch true-color screen, supports up to 48 analog inputs, is equipped with a high-performance ARM processor and large-capacity storage, and integrates full functions such as data collection, recording, display, and communication. It adapts to multi-parameter monitoring and data traceability needs in high-load industrial scenarios.
1. Product Positioning and Core Application Scenarios
The GT80R is a high-performance color paperless recorder, whose core advantages lie in strong data processing capabilities, high operational reliability, and large storage capacity. It can stably process multi-channel data in high-complexity industrial scenarios while ensuring long-term stable system operation.
It is suitable for industries including petroleum, chemical engineering, textile printing and dyeing, metallurgy and building materials, and biomedicine. It applies to scenarios such as full-process multi-parameter monitoring of production lines, full-index status collection of large equipment, and data traceability for complex processes—especially adapting to high-load, multi-signal industrial environments.
2. Basic Structure and Hardware Configuration

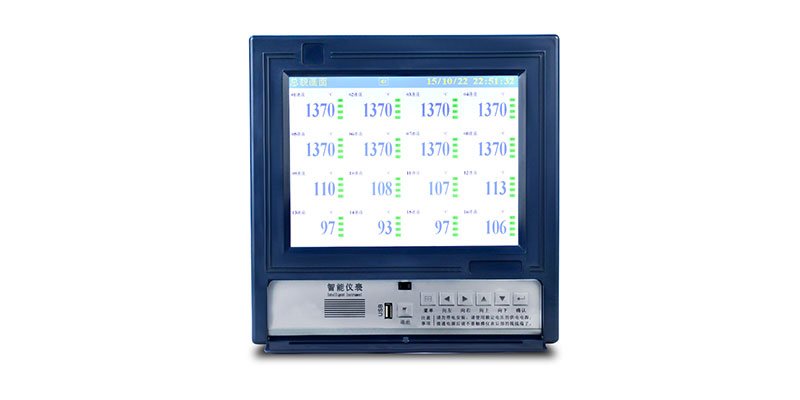

- Appearance and Dimensions: Features a 288*288mm panel size and a 10.4-inch true-color TFT LCD screen, with high display resolution and a user-friendly interface, meeting visualization needs in industrial sites;
- Processor and Storage: Equipped with a high-performance ARM Cortex-M3 32-bit RISC core, paired with large-capacity parallel NAND FLASH (for historical data storage) and serial FRAM (for parameter information storage). Flash capacity options range from 64MB to 248MB, ensuring efficient operation and large-capacity storage of multi-channel data;
- Power Supply and Environment: Supports multi-standard power supplies (220VAC, 24VDC, 12VDC), and operates in temperatures of 0~50℃, humidity of 0~85%RH, and altitude ≤2000 meters, adapting to most industrial on-site environments.
3. Core Product Features
The GT80R’s functional design focuses on “high performance + multi-channel + full functionality”, with core advantages including:
- Diversified Display Functions: Supports multiple display modes (overview, bar graph, real-time curve, historical curve, list query, etc.), with large information capacity, high resolution, clear interfaces, and user-friendly design—helping on-site personnel quickly grasp the status of all parameters;
- Comprehensive Input Capabilities: Fully isolated input supports up to 48 analog inputs, compatible with multiple signal types (voltage, current, frequency, thermal resistance, thermocouple, etc.). No module replacement is needed to access multiple signals simultaneously;
- Rich Output and Expansion: Equipped with 16 power distribution outputs, 8 transmission outputs, and 24 relay alarm outputs, supporting multi-dimensional control linkage. Optional functions (data backup, communication printing, Ethernet, PID control, etc.) adapt to expansion needs in complex scenarios;
- High Reliability and Usability: Low daily maintenance requirements, strong anti-interference performance, high stability, fast response speed, and data transfer capabilities—adapting to long-term continuous operation in industrial scenarios.
4. Technical Parameters and Performance Guarantee
4.1 Input and Output Capabilities
- Input Functions: Fully isolated input supports up to 48 analog inputs, compatible with signals such as voltage (0-5V, etc.), current (0-10mA, etc.), frequency (0-3000Hz), thermal resistance (Pt100, etc.), thermocouple (S/B, etc.), and special signals (F1/F2). The measurement accuracy reaches 0.2%F.S.;
- Output Functions: Includes 16 isolated 24VDC power distribution outputs (supports 12VDC/5VDC), 8 standard current transmission outputs, and 24 relay alarm outputs (configurable upper/lower limits)—covering needs for power supply, signal transmission, and alarm control.
4.2 Recording and Storage
- Recording Capabilities: Flash capacity options range from 64MB to 248MB; recording intervals are adjustable across 11 gears (1 second to 240 seconds). Recording duration is related to Flash capacity, number of input points, and recording interval (formula: Recording days = (Flash capacity × 1024 × 1024 × Recording interval) ÷ (Number of channels × 16 × 24 × 3600)), enabling massive historical data storage;
- Data Transfer: Supports USB1.1/2.0 protocols, allowing fast data transfer via 1G~32G U disks for offline analysis and archiving.
4.3 Communication and Additional Functions
- Communication Interfaces: Supports RS232C, RS485 (Modbus RTU protocol), and RJ45 Ethernet interfaces, catering to both local and remote data transmission;
- Protection Functions: Built-in power-failure protection (permanent storage of parameters and historical data) and hardware clock (accurate operation after power outage) ensure data continuity and accuracy.
5. Product Value Summary
The core advantages of the GT80R Paperless Recorder lie in “multi-channel coverage + high-performance computing + high reliability”: 48 inputs meet multi-parameter monitoring needs in complex scenarios; the high-performance ARM processor and large-capacity storage ensure data processing efficiency; fully isolated input and strong anti-interference performance adapt to high-load industrial environments.
For complex production scenarios in industries like petroleum and chemical engineering, the GT80R not only enables real-time monitoring and data traceability of full-process multi-parameters but also adapts to personalized needs via rich expansion functions. It is a data management terminal that balances efficiency and stability in high-complexity industrial scenarios, providing reliable data support for enterprises’ production control and process optimization.
